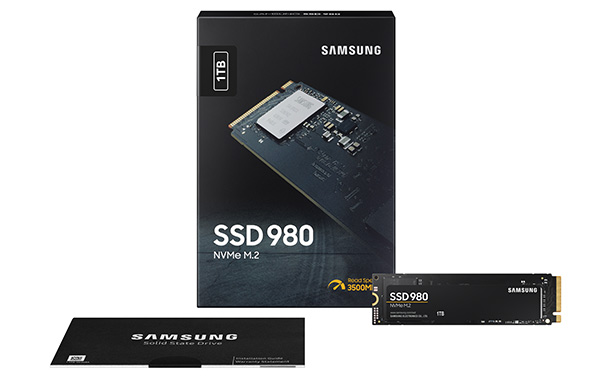

Samsung 980 NVMe SSD that Combines Speed and Affordability

Samsung Electronics’ 980 NVMe SSD, the company’s first consumer drive without DRAM delivers highest performance among DRAM-less SSDs. The new 980 makes blazing NVMe speeds more accessible to a wider range of users.

Previously, DRAM-less designs have presented a disadvantage in speed without the short-term memory at hand for fast access to data. Samsung’s 980 utilizes Host Memory Buffer (HMB) technology, which links the drive directly to the host processor’s DRAM to overcome any performance drawbacks. This technology, coupled with the company’s latest sixth-generation V-NAND as well as optimized controller and firmware, enables the 980 to provide NVMe performance with six times the speed of SATA SSDs. Sequential read and write speeds come in at up to 3,500 and 3,000 MB/s, while random read and write performances are rated as high as 500K IOPS and 480K IOPS[3], respectively.

The newly upgraded Intelligent TurboWrite 2.0 also offers significantly enhanced sustained performance over the previous iteration by allocating a much larger buffer storage area inside the drive.

For users working with extremely large files or running graphics-heavy games, the new ‘Full Power Mode’ added to Samsung’s Magician 6.3 software[5] allows the drive to continuously run at peak performance for uninterrupted work and play.

Additionally, consumers will no longer have to worry about their drive overheating, thanks to its advanced thermal designs. With Dynamic Thermal Guard technology, nickel-coated controller and heat spreader label solutions available in Samsung’s high-end 980 series, users can enjoy stable and reliable performance even during prolonged use.

The SSD further features improved power efficiency of up to 56% when compared to the previous 970 EVO,[6] allowing laptop users to better manage power usage.

The Samsung 980 SSD is available at an MRP of INR 6,499 for the 250GB, INR 8,999 for the 500GB and INR 16,999 for the 1TB. For more information, please visit samsung.com/SSD or samsungssd.com.

Key Specifications

Category

Samsung 980 NVMe SSD

Interface

PCIe Gen.3.0 x4, NVMe 1.4

Form Factor

M.2 (2280)

Capacity

1TB, 500GB, 250GB

Sequential Read/Write Speed

Up to 3,500 / 3,000 MB/s

Random Read/Write Speed (QD32)

Up to 500K IOPS / 480K IOPS

Management Software

Samsung Magician

Data Encryption

AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

Total Bytes Written

600TBW (1TB)

     300TBW (500GB)

     150TBW (250GB)

Warranty

Five-year Limited Warranty

Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration. Performance measurements are based on IOmeter 1.1.0. Sequential and random write performance were measured with Intelligent TurboWrite technology activated. Intelligent TurboWrite operates only within a specific data transfer size. For detailed information, please contact your local service center

* Test system configuration: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz, DDR4 2133MHz 8GBx2 OS-Windows 10 Pro 64bit Asrock Z-170Extreme7+

 Power efficiency (measured as IOPs/watts) improvement determined in comparison to the 970 EVO 1TB. Power consumption measured with IOmeter1.1.0 version with AMD Ryzen 7 3700X 8 Core @3.6GHz, DDR4 8GBx2, OS-Windows 10 Pro 64bit Chipset-GIGABYTE-X570-AORUS MASTER

 Samsung Electronics will not be responsible for any damages not covered by the limited warranty, including but not limited to any loss of data or other information stored on Samsung Electronics product or any loss of profit or revenue which may be incurred by user due to loss of data. For more information on the limited warranty, please visit samsung.com/ssd.

Product covered for five years or until fulfillment of the TBW rating, whichever comes first. For more information on the warranty, please see the warranty document enclosed in the package.
